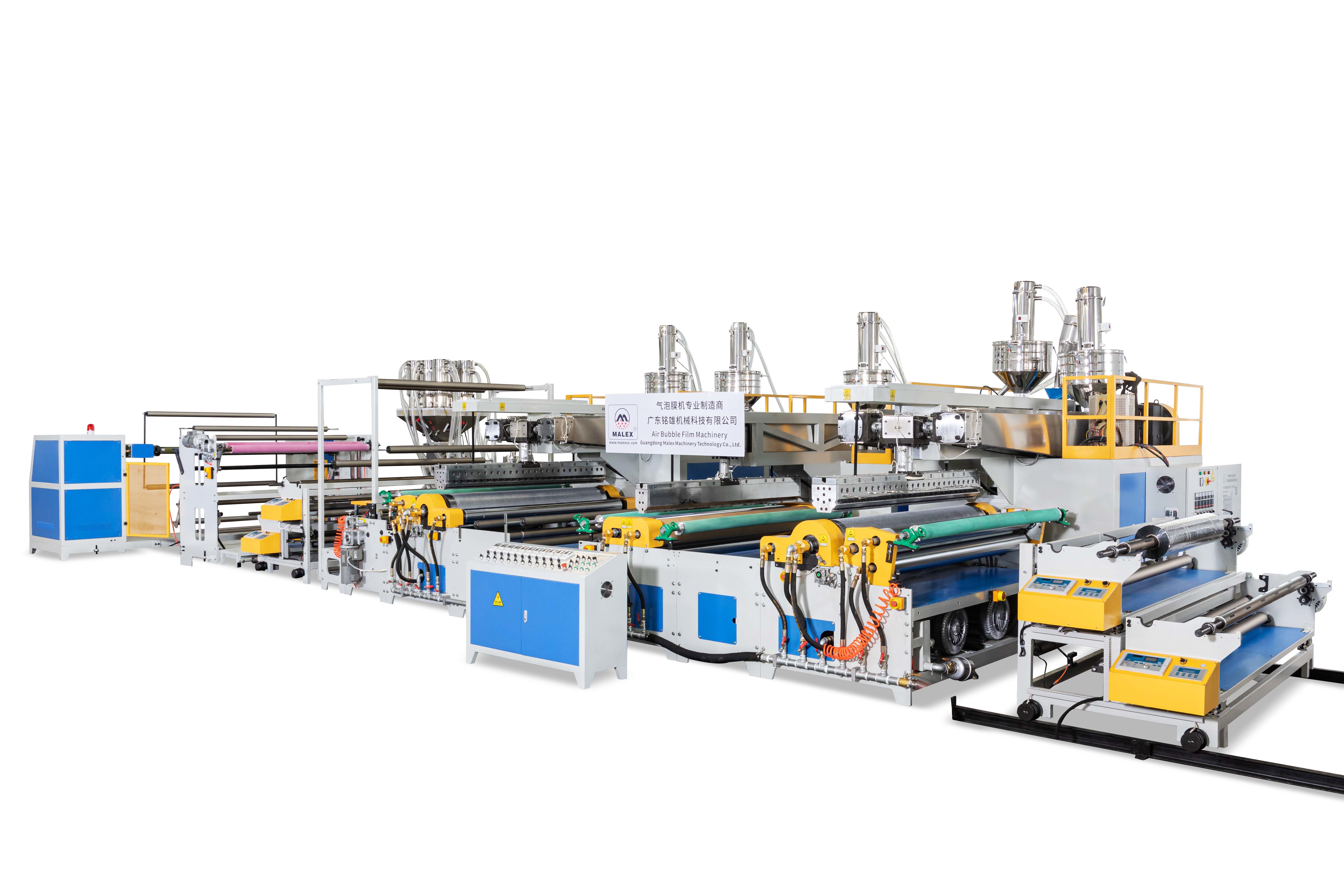

7-Layer Air Bubble Film Machine (5-Extruder)



undefined
+
  • undefined


To produce 2 layers or 3 layers or 5 layers air bubble film (PE front layer + bubble layer +PE middle layer + bubble layer + PE back layer)
And laminated 2 layers PE coated material on both sides. (it can be MPET foil, aluminum foil, kraft paper, EPE foam, PE film etc.)
Each layer is under separately control, can have different thickness, material formula and colore.

Film Width: 1000mm~3000mm
Main Parts: extruder, forming part, winder, control panel
Speed: standard model 38m/min, customized model 60m/min.
Auxiliary Device: mixer, chiller, in-line edge trimmed recycle unit


Keyword:

7-Layer Air Bubble Film Machine (5-Extruder)




Enquire Now

PRODUCT DESCRIPTION

Technical Parameter

Model

MX-W100SA

MX-W160SA

MX-W200SA

MX-W300SA

Applicable material

LDPE / LLDPE / 100% recycled material

Film width

1000mm

1600mm

2000mm

3000mm

Screw diameter

Φ65mm/Φ55mm/Φ55mm/Φ65mmΦ55mm

Φ75mm/Φ65mm/Φ55mm/Φ75mm/Φ65mm

Φ85mm/Φ75mm/Φ65mm/Φ85mm/Φ65mm

Φ95mm/Φ85mm/Φ80mm/Φ95mm/Φ85mm

Main motor power

22KW/15KW/15KW/ 22KW/15KW

30KW/22KW/15KW/ 30KW/22KW

37KW/30KW/22KW/ 37KW/30KW

45KW/37KW/30KW/ 45KW/37KW

Output

160kg/H

240kg/H

320kg/H

440kg/H

Line speed

25m/min

25m/min

20 m/min

15m/min


Product Benefits

High-efficiency & energy saving

Inverter operation, low noise, fast feedback

Customize machine

Meet special production workshop, optimized operation space

Automation and Intelligence

Paper-core auto loading, free of adhesive tape, bubble roller auto unloading etc.

Double Screw Extruder

Product performance functional, Higher output, Lower production cost


Water-cooled bubble forming cylinder

The 3rd generation bubble forming cylinder with inner water-cooled design, customized cooling with spiral design, fast cooling speed, uniform surface heat dissipation

图片名称
图片名称

Vacuum pump with inverter operation

Adopts inverter to adjust vacuum pump suctioned capacity, fuller air suctioned in each bubble, and lower noise.

图片名称

Automatic cutting winder

The pioneer of free adhesive tape & free paper core, adopts constant tension with inverter control, winding tension is stable, reduce stretching deformation of material, reduce scrap rate, and improve the subsequent production yield.

图片名称

12

Double servo of EPC, high precision, stable & reliable. Tension pressure transducer, it can effectively reduce the tensile deformation during co-extrusion film lamination.

12

Alloy treatment screw

Independently R&D screw design, increasing the length to diameter ratio, extend plasticizing section, achieving uniform shear, effectively improving plasticizing performance, can using 100% recycled materials and improving product strength.

图片名称
图片名称

Multi-size bubble forming cylinder installed on machine

To meet production needs of different specifications of bubble film, multiple set bubble forming cylinder can be installed simultaneously, saves disassembly time and maintaining a clean and tidy production environment.

图片名称
