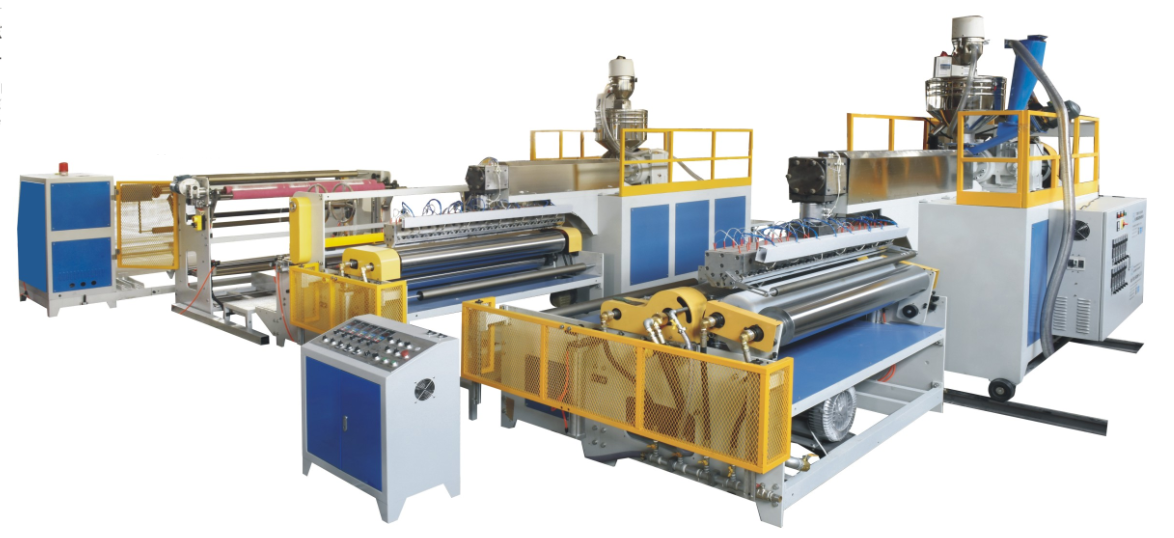

3-Layer Air Bubble Film Machine (2-Extruder)
To produce 2 layers or 3 layers air bubble film (PE front layer + bubble layer +PE back layer)
Film Width: 1000mm~3000mm
Main Parts: extruder, forming part, winder, control panel
Speed: standard model 38m/min, customized model 60m/min.
Auxiliary Device: mixer, chiller, in-line edge trimmed recycle unit
Categories：
Keyword：
3-Layer Air Bubble Film Machine (2-Extruder)
Phone:
Email:
Enquire Now
PRODUCT DESCRIPTION
Technical Parameter
|
Model |
MX-B100T |
MX-B160T |
MX-B200T |
MX-B300T |
|
|
Applicable material |
LDPE / LLDPE / 100% recycled material |
||||
|
Film width |
1000mm |
1600mm |
2000mm |
3000mm |
|
|
Screw diameter |
Φ65mm/Φ55mm |
Φ75mm/Φ55mm |
Φ90mm/Φ65mm |
Φ120mm/Φ80mm |
|
|
Main motor power |
22KW/15KW |
30KW/15KW |
37KW/22KW |
55KW/30KW |
|
|
Output |
100kg/H |
120kg/H |
150kg/H |
230kg/H |
|
|
Line speed |
30m/min |
30m/min |
25m/min |
25m/min |
|
Product Benefits
High-efficiency & energy saving
Inverter operation, low noise, fast feedback
Customize machine
Meet special production workshop, optimized operation space
Automation and Intelligence
Paper-core auto loading, free of adhesive tape, bubble roller auto unloading etc.
Double Screw Extruder
Product performance functional, Higher output, Lower production cost
Water-cooled bubble forming cylinder
The 3rd generation bubble forming cylinder with inner water-cooled design, customized cooling with spiral design, fast cooling speed, uniform surface heat dissipation
Vacuum pump with inverter operation
Adopts inverter to adjust vacuum pump suctioned capacity, fuller air suctioned in each bubble, and lower noise.
Automatic cutting winder
The pioneer of free adhesive tape & free paper core, adopts constant tension with inverter control, winding tension is stable, reduce stretching deformation of material, reduce scrap rate, and improve the subsequent production yield.
Double servo of EPC, high precision, stable & reliable. Tension pressure transducer, it can effectively reduce the tensile deformation during co-extrusion film lamination.
Alloy treatment screw
Independently R&D screw design, increasing the length to diameter ratio, extend plasticizing section, achieving uniform shear, effectively improving plasticizing performance, can using 100% recycled materials and improving product strength.
Multi-size bubble forming cylinder installed on machine
To meet production needs of different specifications of bubble film, multiple set bubble forming cylinder can be installed simultaneously, saves disassembly time and maintaining a clean and tidy production environment.
The 3-Layer Air Bubble Film Machine (2-Extruder) is a state-of-the-art and highly efficient piece of equipment in the packaging industry.
This machine is specifically designed to produce three-layer air bubble film with the assistance of two extruders. It offers superior performance and quality output.
The 3-Layer Air Bubble Film Machine (2-Extruder) has the ability to create film with enhanced durability and protection. The multiple layers provide better shock absorption and insulation properties, ensuring the safety of packaged items.
It is capable of handling high production volumes with remarkable speed and accuracy. This allows businesses to meet their packaging demands in a timely manner and keep up with market requirements.
The extruders in this machine play a crucial role in ensuring a consistent and uniform extrusion process. They are precision-engineered to deliver the right amount of material for each layer, resulting in a high-quality final product.
The machine also offers flexibility in terms of adjusting the thickness and specifications of the air bubble film. This enables it to adapt to different packaging applications and customer requirements.
In addition to its excellent functionality, the 3-Layer Air Bubble Film Machine (2-Extruder) is built to last. It is fabricated using high-quality materials and components to ensure reliable operation and minimal maintenance.
Furthermore, the use of this machine leads to cost savings in the long run. The efficient production process and the quality of the air bubble film it produces contribute to reduced packaging costs and improved product protection.
In conclusion, the 3-Layer Air Bubble Film Machine (2-Extruder) is a cutting-edge solution for the production of high-quality air bubble film. Its advanced features, efficiency, and durability make it an invaluable asset for packaging companies, helping them provide superior packaging solutions and meet the diverse needs of their clients.
Industrial Application
Layer 5 applications
Layer 5 applications
Layer 5/7 applications
Layer 5 applications
Layer 3 applications
Layer 2 applications
Service Process
01
Requirements Analysis
Raw materials; Product performance & specification analysis
02
Equipment Selection Suggestion
Customized intelligent device; Customized specification, customized mold size
03
Whole Plant Planning Advice
Arrangements for operation, machine & material; Water, power & air requirements during operation
04
Delivery
Professional installation & tuning. On-site operation training, Regular maintenance guide
05
After Sales Service
On-site maintenance upkeep; Subsequent equipment upgrade service.
