3-Layer Air Bubble Film Machine (3-Extruder)
To produce 2 layers or 3 layers air bubble film (bubble layer +PE back layer)
Each layer is under separately controlled, can have different thickness, material formula and color.
Film Width: 1000mm~3000mm
Main Parts: extruder, forming part, winder, control panel
Speed: standard model 38m/min, customized model 60m/min.
Auxiliary Device: mixer, chiller, in-line edge trimmed recycle unit
Categories：
Keyword：

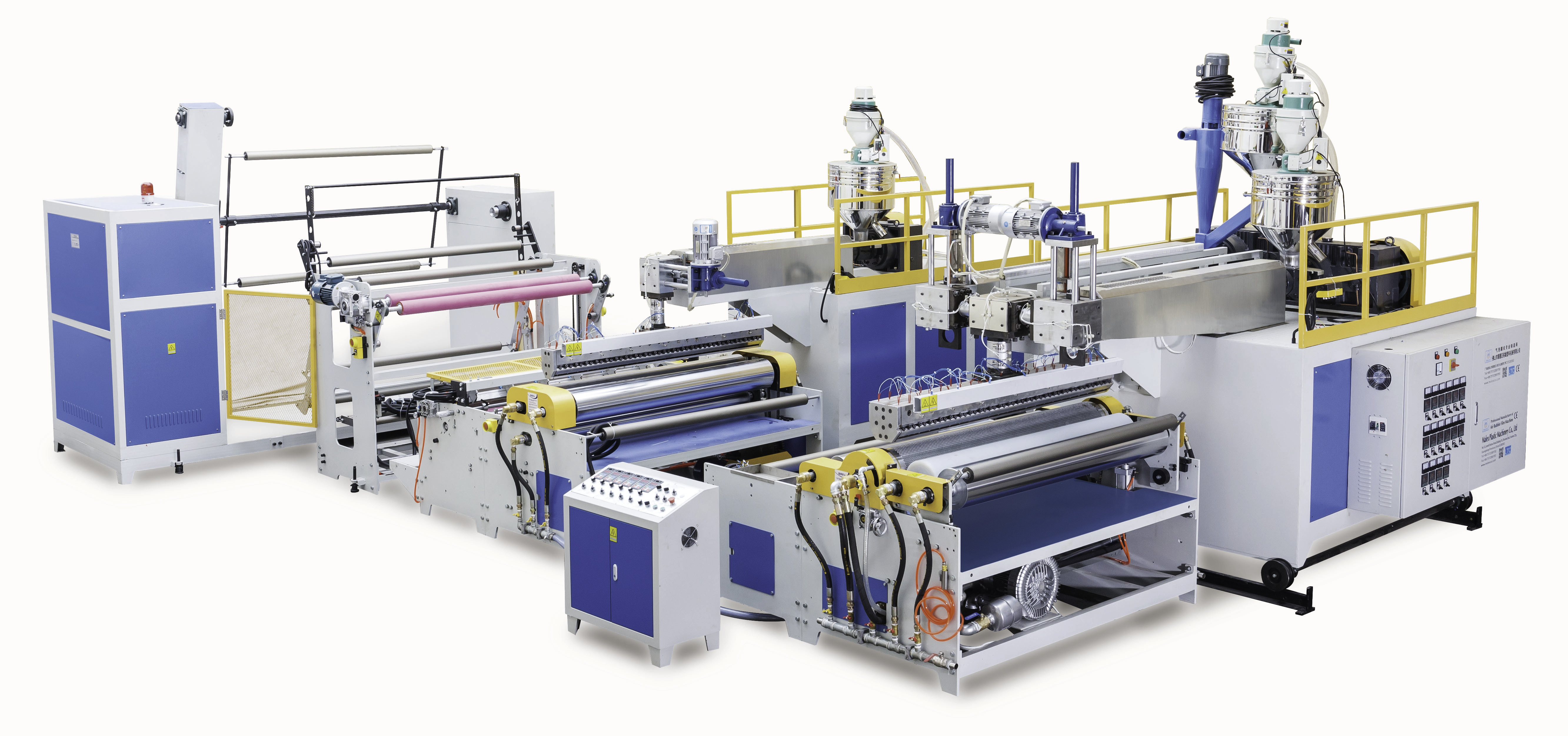

3-Layer Air Bubble Film Machine (3-Extruder)
Phone:
Email:
Enquire Now
PRODUCT DESCRIPTION
Technical Parameter
Model | MX-W100T | MX-W160T | MX-W200T | MX-W300T |
Applicable material | LDPE / LLDPE / 100% recycled material | |||
Film width | 1000mm | 1600mm | 2000mm | 3000mm |
Screw diameter | Φ65mm/Φ55mm/Φ55mm | Φ75mm/Φ65mm/Φ55mm | Φ85mm/Φ75mm/Φ65mm | Φ95mm/Φ85mm/Φ80mm |
Main motor power | 22KW/15KW/15KW | 30KW/22KW/15KW | 37KW/30KW/22KW | 45KW/37KW/30KW |
Output | 140kg/H | 180kg/H | 240kg/H | 280kg/H |
Line speed | 35m/min | 35m/min | 35m/min | 25m/min |
Product Benefits
High-efficiency & energy saving
Inverter operation, low noise, fast feedback
Customize machine
Meet special production workshop, optimized operation space
Automation and Intelligence
Paper-core auto loading, free of adhesive tape, bubble roller auto unloading etc.
Double Screw Extruder
Product performance functional, Higher output, Lower production cost
Water-cooled bubble forming cylinder
The 3rd generation bubble forming cylinder with inner water-cooled design, customized cooling with spiral design, fast cooling speed, uniform surface heat dissipation
Vacuum pump with inverter operation
Adopts inverter to adjust vacuum pump suctioned capacity, fuller air suctioned in each bubble, and lower noise.
Automatic cutting winder
The pioneer of free adhesive tape & free paper core, adopts constant tension with inverter control, winding tension is stable, reduce stretching deformation of material, reduce scrap rate, and improve the subsequent production yield.
Double servo of EPC, high precision, stable & reliable. Tension pressure transducer, it can effectively reduce the tensile deformation during co-extrusion film lamination.
Alloy treatment screw
Independently R&D screw design, increasing the length to diameter ratio, extend plasticizing section, achieving uniform shear, effectively improving plasticizing performance, can using 100% recycled materials and improving product strength.
Multi-size bubble forming cylinder installed on machine
To meet production needs of different specifications of bubble film, multiple set bubble forming cylinder can be installed simultaneously, saves disassembly time and maintaining a clean and tidy production environment.
Industrial Application
Layer 2 applications
Layer 3 applications
Layer 5 applications
Layer 5/7 applications
Layer 5 applications
Layer 5 applications
Service Process
01
Requirements Analysis
Raw materials; Product performance & specification analysis
02
Equipment Selection Suggestion
Customized intelligent device; Customized specification, customized mold size
03
Whole Plant Planning Advice
Arrangements for operation, machine & material; Water, power & air requirements during operation
04
Delivery
Professional installation & tuning. On-site operation training, Regular maintenance guide
05
After Sales Service
On-site maintenance upkeep; Subsequent equipment upgrade service.
